Home page

Products

Pharmaceutical Liquid Preparation System

Marya liquid preparation system is a pharmaceutical equipment used to mix and distribute pharmaceutical liquids. It is widely used in the preparation process of various conventional chemical injections, complex injections, and biological injections. Pharmaceutical factory usually use it to feed and mix the active ingredients, excipients, and solvents according to the process requirements, and prepare them into a solution that meets the required concentration for the next step of filling.

Core Features
Functions
Compliance & Standards
Application Scenarios
Technical Parameter

1. CIP/SIP-ready for easy cleaning and sterilization.
2. The tank body adopts a bottom-mounted magnetic drive agitator, which has no risk of leakage and more uniform stirring.
3. The system adopts a 3D module design, which is compact, beautiful and saves floor space.
4. Flexible formula management, electronic signature, electronic records and audit tracking functions.
5. The system can be equipped with online detection instruments such as PH, O3, conductivity, etc., and key process parameters can be controlled in production.
6. Key components are all high-end European and American brands with stable and reliable performance.
7. Fully compatible with our vial filling, ampoule filling, or syringe filling lines. Seamless integration ensures consistent fluid transfer, minimized contamination risk, and streamlined operations.

Basic Functions	Optional Functions
CIP (Clean in place)	Vacuuming inside tank
SIP (Sanitize in Place)	Nitrogen protection
Hot water circulation	On-line integrity testing
Multi-level user access rights	PH automatic control
Recipe management	WFI instant cooling
Audit trail	Real-time data printing
Electronic record	Pipeline temperature control

Designed and manufactured according to GMP guidelines
CE marked
Full documentation support: FAT/SAT, IQ/OQ protocols
21 CFR Part 11 compliant (for software & data integrity)
Biological preparations (e.g., vaccines, antibodies)
Injectable solutions
Eye drops
Aesthetic medicine products

Name	High Volume Preparation System	Small Volume Preparation System
Tank Volume（L）	3000/5000/10000	50/300/500/1000
Tank Functions	Pre-preparation→Preparation	Pre-preparation→Preparation→Storage
Working Volume （L）	200~1000/500~3000/ 800~5000/1000~10000	10~50/50~300/100~500
Tank Material	Inner 316L, Insulation shell 304	Inner 316L, Insulation shell 304
Design Pressure（MPa）	-0.1~0.4	-0.1~0.4
Design Temperature（℃）	-10~150	-10~150
Type of mixing	Magnetic drive stirrer	Magnetic drive stirrer
Volume measurement	Load sensor	Load sensor

Why MARYA

Trusted Worldwide

20 +

Years rich Industry Experience

3 +

Production Bases

60 +

Successful Projects in 60 Countries

300 +

Loyal Clientele

Company Honors and Certificates

CE Bottle unscrambler and labeling machine

Some of Our Customers

Well - known visiting Clients

Invited to the Embassy of the United Republic of Tanzania in Guangzhou to discuss projects

NBA (Zimbabwe National Biotechnology Authority) conducts FAT at MARYA’s Factory

NOVO NORDISK client Visit

Argentine client visits for FAT in MARYA

Successful Cases

Argentina Vial and Ampoule line

Malaysia Prefilled Syringe Filling line

Zimbabwe Vial Filling Line

INTERESTED IN MARYA?

Get In Touch With Us.

We Will Be Happy To Discuss Our Solutions And Services With You.

Contact Now

Services

Full-process Consulting Services

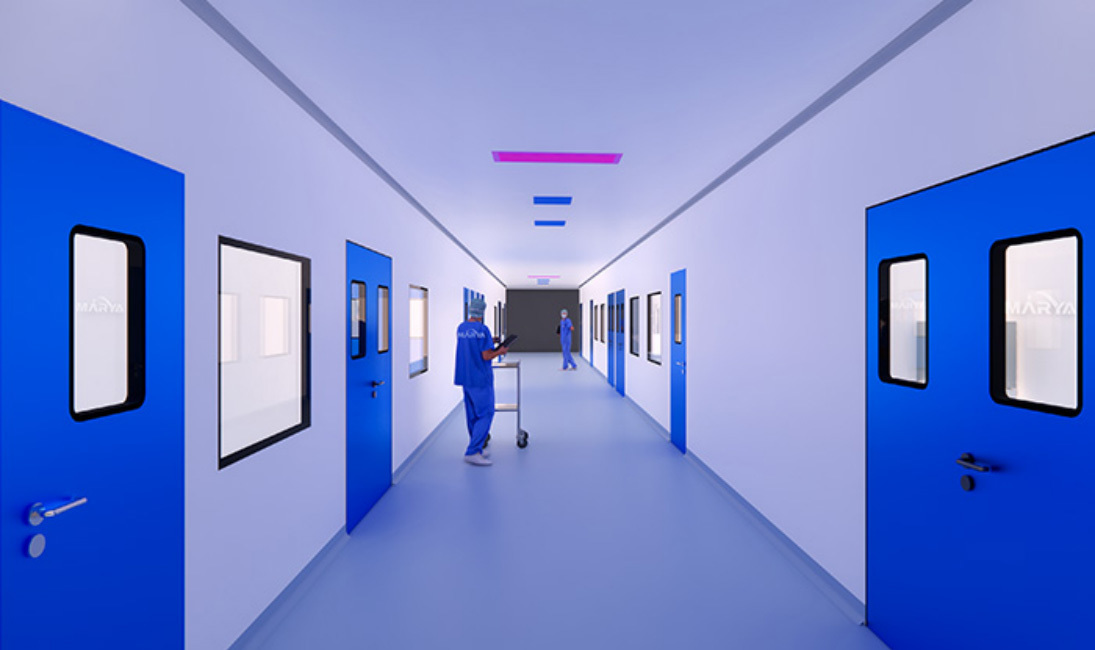

Whether you are preparing to build a new pharmaceutical factory, build a cleanroom that complies with local GMP regulations, or purchase pharmaceutical equipment to develop a new production line, whether it is a separate cleanroom or pharmaceutical machine project, or a one-stop solution, Marya's professional teams in the fields of pharmaceutical technical process, process equipment, decoration engineering, HVAC engineering, pipeline engineering, utility equipment, intelligent automatic control systems, project cost and other fields can provide you with full-process technical consulting services, and solve your needs one-on-one.

2D/3D Design Modeling Services

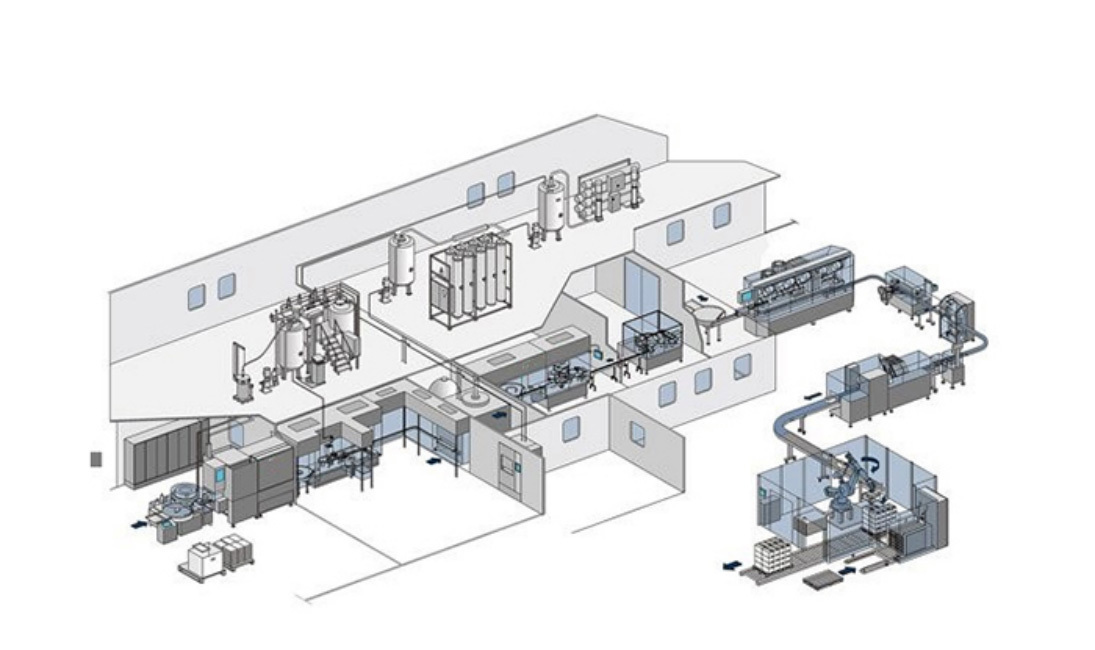

Marya project design team is composed of professional CAD and BIM engineers with more than 20 years of comprehensive industry experience and can provide you with comprehensive design services, including but not limited to process layout drawings, technical process charts, 3D models and animations, air conditioning system scheme design, construction drawing design, plant/pharmaceutical machine layout drawings, etc.

Machine Customization Services

Based on the individual needs of clients in different countries, Marya helps you clarify specific needs, match appropriate models, and customize one stop filling solutions for sterile small-volume preparations, large-volume injections, oral liquids/syrups, solid preparations, etc.

Validation Services (FAT/SAT)

Marya will appoint an engineer with rich project management experience as the person in charge, who will be fully responsible for project management and liaison work. After the equipment is manufactured, our engineers and the buyer's representatives will participate in the FAT test. After the equipment arrives at the buyer's site, it will be installed and debugged. After the equipment reaches optimal operation, the buyer will conduct SAT testing and inspection.

Customer FAQ

Are you manufacturer or trader? Where are your factory located?

We are manufacturer. Our factory is located in Changsha and Suzhou.

What certificate do you have?

We have CE, ISO, ROHS, SGS etc.

What documents will you provide?

Usually we will provide DQ, IQ, PQ, OQ, FAT, SAT, operation manual, maintenance instruction,layout drawing.etc.

What is the production lead time?

Standard 25-60 days after deposit received and technical data confirmed, we can make special arrangement for better shipment if needed;
Standard 60-150 days after deposit received and technical data confirmed based on different machines, we can make special arrangement for better shipment if needed.

How long is your warranty? Can we extend?

12 months after installation and commissioning or 18 moths from the day that the equipment arrived on site. Prevail in the first arrival date.
Warranty can be extended with extra charge.

Have you done similar projects overseas?

Marya’s business map covers more than 60 countries and regions around the world, such as the United States, Russia, Bulgaria, Britain, Portugal, Poland, Switzerland, ltaly, New Zealand, Malta, Moldova, Malaysia, Uzbekistan, lran, Egypt, Saudi Arabia, UAE, Ecuador, Dominica, Panama, Uruguay, Argentina, Tanzania, Zimbabwe, Ethiopia, Indonesia, Bangladesh, and others, and we gained good reputation.

Key words:

Pharmaceutical Liquid Preparation System

Pharmaceuitical Preparation System

GMP Cell Drug Preparation Station

Preparation System

None

:Next

Pharmaceutical Formulation System

Contact MARYA Engineers to Claim Your Free GMP compliant Sterile Pharmaceutical Production Line Solution
